Intra-mart IAP menu setting

 1.routing setting

  path: %resin_home%\webapps\%project_name%\WEB-INF\conf\routing-jssp-config\project_name.xml
example:

<?xml version="1.0" encoding="UTF-8"?>

<routing-jssp-config

  xmlns="http://www.intra-mart.jp/router/routing-jssp-config"

  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

  xsi:schemaLocation="http://www.intra-mart.jp/router/routing-jssp-config routing-jssp-config.xsd ">

  <!-- <authz-default uri="service://test/manager" action="execute"/> -->
  <!--file exist confirm: WEB-INF/jssp/src/test/common/search.html,search.js -->

  <file-mapping path="/test/common/search" page="/test/common/search">

    <authz uri="service://test/manager" action="execute" />

  </file-mapping>

</routing-jssp-config>

 2.Auth setting

open menu Auth(認可) -> select resource catalog: pages ->  start auth setting ->

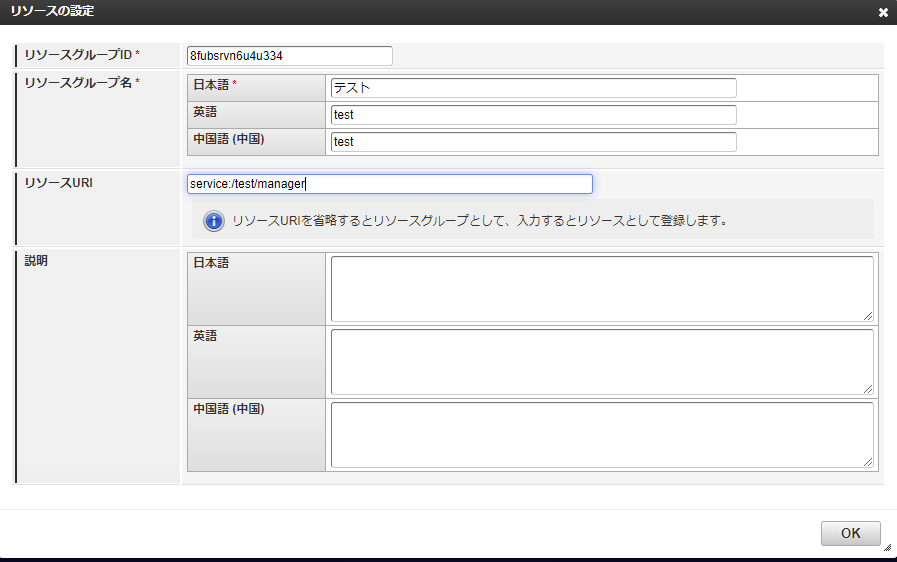

new a resouce named "test Manager"

3.menu item setting

open menu -> new a menu item with url:"test/common/search".
attention: no "/" before "test/", and no "jssp" after search

4.mapping menu item  and resources

make the mapping relationship between the menu item and resource
by click auth-setting in the menu item page, after the URL textbox.

Oracle Create User And grant rights

CREATE USER WXG01
IDENTIFIED BY "WXG01"
DEFAULT TABLESPACE users
TEMPORARY TABLESPACE temp

GRANT DBA TO WXG01
GRANT UNLIMITED TABLESPACE TO WXG01

CREATE TABLE WXG_MESSAGE(

 MSG_CD CHAR(10),

 MSG_MONG VARCHAR2(200)

);

DROP USER username CASCADE;

SELECT 'DROP TABLE "' || TABLE_NAME || '" CASCADE CONSTRAINTS;'
FROM user_tables;

begin
  for i in (select 'drop table '||table_name||' cascade constraints' tb from user_tables)
  loop
     execute immediate i.tb;
  end loop;
  commit;
end;
purge RECYCLEBIN;

Introduction of git rollback commands.

git status and rollback commands:

1. editing.  a new source file editing, without any git operation.

git checkout -- a.txt   # rollback  a.txt
git checkout -- .       #  rollback all files.

2. stage.   after git add

git reset HEAD a.txt    # rollback  a.txt

git reset HEAD .  #  rollback all files.



3. committed.   after git commit

git log # get the commit id you want to rollback

git reset --hard <commit_id_youget_above>
# or
git reset --hard HEAD^  # rollback to last commited and added
git reset --soft HEAD^  # rollback commit only, ignore added
# or
git reset HEAD^  # rollback to git add .

4. pushed.   after git push

git log # get the commit id you want to rollback
git reset --hard <commit_id_youget_above>

# force push for deleting the remote sources after commit_id_youget_above
git push origin HEAD --force

5. git branch -D branchname

About git branch

git init
git config --global user.email "username@domail.com"
git config --global user.name "username"

git add .
git commit -m "commit comment"
git push -u local-branch remote-branch

git branch b01 #create a new branch named b01
git branch b02 #create a new branch named b02

git checkout b01 #switch current branch to b01
git add newfile1.txt #add a newfile1.txt in b01

git checkout b02 #switch current branch to b02
git add newfile2.txt #add a newfile2.txt in b02

git commit -m "commit newfile2.txt for added."

git checkout b01 #switch current branch to b01
git commit -m "commit newfile1.txt for added"
git push  # push b01.local b01-> remote b01.

git checkout master #switch current branch to master
git merge b01 #local merge b01 to master
git push  # push merged master to remote master.

bat shell examples1

 if NOT EXIST "project/file.txt" (
  ECHO "ERROR: NOT FOUND file.txt, process aborted."
  GOTO PRC_END
)

CD project
CALL step2.bat
CD ..

ECHO "START ant for building..."
C:\eclipse\plugins\org.apache.ant_1.10.5.v20180808-0324\bin\ant make
ECHO "INFO: process completed!"

:PRC_END
EXIT

--------------------------

if EXIST "file.txt" (rm file.txt)

if EXIST "file.zip.old" (

  if EXIST "file.zip" (rm file.zip)

  mv file.zip.old file.zip

)

mv  file.zip  file.gz
gzip -d file.gz
cp file.txt file.txt.bak

#replace s/pattern/replacement/g

sed -i -e "s/<ns2:user-modules>/<ns2:user-modules\/>\n<ns2:user-modules>/g" file.txt

#replace /startlinepattern/,/endlinepattern/ delete matched lines

sed -i -e "/<ns2:user-modules>/,/<\/ns2:user-modules>/ d" file.txt

#replace s/singlelinepattern//g  delete the matched line.

sed -i -e "s/^\s*<ns2:module id=\"mypackage.*$//g" file.txt

# delete rows between user-module
sed -E -i -e "/<ns2:user-module valid=.+/,/<\/ns2:user-module>/ d" file.txt

# delete rows not match pattern1 and match patter2
sed -E -i -e '/id="jp.co.intra_mart./! {/^\s*<ns2:module id=[^\<\>]+ version=\"1.0.0\"\/>/ d}' file.txt

gzip -k file.txt    #to file.gz and keep file.txt

set time_tmp=%time: =0%
set now=%date:/=%%time_tmp:~0,2%%time_tmp:~3,2%%time_tmp:~6,2%
echo %now%

introdction of gzip, tar command

0. unzip：

tar xvzfmp test.tar.gzip -C  /tmp/test/here

m: on error Cannot utime: Operation not permit

p: on error cannot change permit +rmx

1. gzip.

$ ls
docker-compose.yml docker-compose-oracle.yml
$ gzip *.yml
$ ls
docker-compose.yml.gz docker-compose-oracle.yml.gz
$ gzip -d *.gz
$ ls
docker-compose.yml docker-compose-oracle.yml
$ gzip -k *.yml
$ ls
docker-compose.yml.gz docker-compose-oracle.yml.gz docker-compose.yml docker-compose-oracle.yml

$ gzip --help
BusyBox v1.31.1 () multi-call binary.

Usage: gzip [-cfkdt123456789] [FILE]...

Compress FILEs (or stdin)

        -1..9   Compression level
        -d      Decompress
        -t      Test file integrity
        -c      Write to stdout
        -f      Force
        -k      Keep input files

2. tar

$ ls
docker-compose.yml docker-compose-oracle.yml
$ tar czf docker-compose.tar.gz *.yml
$ ls
docker-compose.yml docker-compose-oracle.yml docker-compose.tar.gz
$ gzip -d *.gz
$ ls
docker-compose.tar docker-compose.yml docker-compose-oracle.yml
$ tar tf docker-compose.tar
docker-compose-oracle.yml
docker-compose.yml
$ tar xf docker-compose.tar
$ ls
docker-compose.tar docker-compose.yml docker-compose-oracle.yml
$ gzip -k docker-compose.tar
$ ls
docker-compose.tar docker-compose.tar.gz docker-compose.yml docker-compose-oracle.yml
$ rm *.yml
$ ls
docker-compose.tar docker-compose.tar.gz

$ tar xzf docker-compose.tar.gz
$ ls
docker-compose.tar docker-compose.tar.gz docker-compose.yml docker-compose-oracle.yml

$ tar --help
BusyBox v1.31.1 () multi-call binary.

Usage: tar c|x|t
            [-ZzJjahmvokO] [-f TARFILE] [-C DIR] [-T FILE] [-X FILE] [--exclude PATTERN]...
            [FILE]...

Create, extract, or list files from a tar file

        c       Create
        x       Extract
        t       List details

        -f FILE Name of TARFILE ('-' for stdin/out)
        -C DIR  Change to DIR before operation
        -v      Verbose
        -O      Extract to stdout
        -m      Don't restore mtime
        -o      Don't restore user:group
        -k      Don't replace existing files
        -Z      (De)compress using compress
        -z      (De)compress using gzip
        -J      (De)compress using xz
        -j      (De)compress using bzip2
        -a      (De)compress using lzma
        -h      Follow symlinks
        -T FILE File with names to include
        -X FILE File with glob patterns to exclude
        --exclude PATTERN Glob pattern to exclude

create docker image from docker container by commit

1. Run Docker base image like ubuntu

[node1] (local) root@192.168.0.23 ~
$ docker run -it ubuntu bash
root@153c1eb1d2c4:/# apt-get update
Get:1 http://security.ubuntu.com/ubuntu
focal-security InRelease [107 kB]
...
Reading package lists... Done
root@153c1eb1d2c4:/# apt-get install -y figlet
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following NEW packages will be installed:
  figlet
root@153c1eb1d2c4:/# figlet "hello docker"
 _          _ _           _            _
| |__   ___| | | ___   __| | ___   ___| | _____ _ __
| '_ \ / _ \ | |/ _ \ / _` |/ _ \ / __| |/ / _ \ '__|
| | | |  __/ | | (_) | (_| | (_) | (__|   <  __/ |
|_| |_|\___|_|_|\___/ \__,_|\___/ \___|_|\_\___|_|
root@153c1eb1d2c4:/# exit
[node1] (local) root@192.168.0.23 ~
$ docker ps -a
ONTAINER ID        IMAGE               COMMAND             CREATED             STATUS                            PORTSNAMES
153c1eb1d2c4        ubuntu              "bash"              6 minutes ago       Exited (127) About a minute ago
$ docker commit --author lqwangxg --message "save as image" 153
sha256:7ff21c05ee7d57d44f7733e0d116080e0ac66c432836211403d82fd18c9ad36f
$ docker images
EPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
<none>              <none>              7ff21c05ee7d        12 seconds ago      97.2MB
$ docker tag 7ff ubuntu-figlet
$ docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
ubuntu-figlet       latest              7ff21c05ee7d        2 minutes ago       97.2MB

Study memo of docker swarm

1. Docker swarm init

$ docker swarm init --advertise-addr $(host -i)
docker swarm init --advertise-addr $(hostname -i)
Swarm initialized: current node (s19krjqmzoz0zozspjszjojdk) is now a manager.

To add a worker to this swarm, run the following command:

    docker swarm join --token SWMTKN-1-589slthktmh85s376jqypz4qtt8qyj7nbpjj6i840sgm0nfo2m-87sdp1mneat2kxiwo6tblag3c 192.168.0.13:2377

To add a manager to this swarm, run 'docker swarm join-token manager' and follow the instructions.


2. Docker node ls

$ docker node ls
ID                            HOSTNAME            STATUS              AVAILABILITY        MANAGER STATUS      ENGINE VERSION
s19krjqmzoz0zozspjszjojdk *   node1               Ready               Active              Leader              19.03.11

3. Docker stack deploy

$ docker stack deploy --help
Usage:  docker stack deploy [OPTIONS] STACK

Deploy a new stack or update an existing stack

Aliases:
  deploy, up

Options:
      --bundle-file string     Path to a Distributed Application Bundle file
  -c, --compose-file strings   Path to a Compose file, or "-" to read from stdin
      --orchestrator string    Orchestrator to use (swarm|kubernetes|all)
      --prune                  Prune services that are no longer referenced
      --resolve-image string   Query the registry to resolve image digest and supported platforms
                               ("always"|"changed"|"never") (default "always")
      --with-registry-auth     Send registry authentication details to Swarm agents

3. Docker stack deploy

$ docker stack deploy --help
Usage:  docker stack deploy [OPTIONS] STACK

Deploy a new stack or update an existing stack

Aliases:
  deploy, up

Options:
      --bundle-file string     Path to a Distributed Application Bundle file
  -c, --compose-file strings   Path to a Compose file, or "-" to read from stdin
      --orchestrator string    Orchestrator to use (swarm|kubernetes|all)
      --prune                  Prune services that are no longer referenced
      --resolve-image string   Query the registry to resolve image digest and supported platforms
                               ("always"|"changed"|"never") (default "always")
      --with-registry-auth     Send registry authentication details to Swarm agents

$ docker stack deploy --compose-file=docker-stack.yml voting_stack
Creating network voting_stack_backend
Creating network voting_stack_frontend
Creating network voting_stack_default
Creating service voting_stack_result
Creating service voting_stack_worker
Creating service voting_stack_visualizer
Creating service voting_stack_redis
Creating service voting_stack_db
Creating service voting_stack_vote

$ cat docker-stack.yml
version: "3"
# create required networks and volummes.
# services, networks, volumes, all are duplications.
networks:
  frontend:
  backend:

volumes:
  db-data:

services:
  redis:
    image: redis:alpine
    networks:
      - frontend
    deploy:
      replicas: 1
      update_config:
        parallelism: 2
        delay: 10s
      restart_policy:
        condition: on-failure
  db:
    image: postgres:9.4
    environment:
      POSTGRES_USER: "postgres"
      POSTGRES_PASSWORD: "postgres"
    volumes:
      - db-data:/var/lib/postgresql/data
    networks:
      - backend
    deploy:
      placement:
        constraints: [node.role == manager]
  vote:
    image: dockersamples/examplevotingapp_vote:before
    ports:
      - 5000:80
    networks:
      - frontend
    depends_on:
      - redis
    deploy:
      replicas: 2
      update_config:
        parallelism: 2
      restart_policy:
        condition: on-failure
  result:
    image: dockersamples/examplevotingapp_result:before
    ports:
      - 5001:80
    networks:
      - backend
    depends_on:
      - db
    deploy:
      replicas: 1
      update_config:
        parallelism: 2
        delay: 10s
      restart_policy:
        condition: on-failure

  worker:
    image: dockersamples/examplevotingapp_worker
    networks:
      - frontend
      - backend
    depends_on:
      - db
      - redis
    deploy:
      mode: replicated
      replicas: 1
      labels: [APP=VOTING]
      restart_policy:
        condition: on-failure
        delay: 10s
        max_attempts: 3
        window: 120s
      placement:
        constraints: [node.role == manager]

  visualizer:
    image: dockersamples/visualizer:stable
    ports:
      - "8080:8080"
    stop_grace_period: 1m30s
    volumes:
      - "/var/run/docker.sock:/var/run/docker.sock"
    deploy:
      placement:
        constraints: [node.role == manager]

Docker-compose build dockerfile and run service

Ref

https://github.com/lqwangxg/dockerstudy

STEP4:

1. Show folder and files by tree commad.

$ tree
.
├── README.md
├── api
│   ├── Dockerfile
│   ├── linkextractor.py
│   ├── main.py
│   └── requirements.txt
├── docker-compose.yml
└── www
    └── index.php

2. Show ./api/Dockerfile

$ cat api/Dockerfile
FROM       lqwangxg/python
LABEL      maintainer="lqwangxg@gmail.com"

WORKDIR    /app
COPY       requirements.txt /app/
RUN        pip install -r requirements.txt

COPY       *.py /app/
RUN        chmod a+x *.py

CMD        ["./main.py"]

3. Show  docker-compose.yml

$ cat api/Dockerfile
version: '3'

services:
  api:
    image: study4
    build: ./api
    ports:
      - "5000:5000"
  web:
    image: php:7-apache
    ports:
      - "80:80"
    environment:
      - API_ENDPOINT=http://api:5000/api/
    volumes:
      - ./www:/var/www/html

4. Build and run by docker-compose.yml

$ docker-compose up -d --build
Building api
Step 1/8 : FROM       lqwangxg/python
 ---> 6cf621cb1327
Step 2/8 : LABEL      maintainer="lqwangxg@gmail.com"
 ---> Using cache
 ---> 3514f593e3e4
Step 3/8 : WORKDIR    /app
 ---> Using cache
 ---> 32c31859c252
Step 4/8 : COPY       requirements.txt /app/
 ---> Using cache
 ---> 8352c208cfb7
Step 5/8 : RUN        pip install -r requirements.txt
 ---> Using cache
 ---> c61c2800b117
Step 6/8 : COPY       *.py /app/
 ---> Using cache
 ---> 9aeb4cc13650
Step 7/8 : RUN        chmod a+x *.py
 ---> Using cache
 ---> e8ee2eceb5e1
Step 8/8 : CMD        ["./main.py"]
 ---> Using cache
 ---> 85bb2729865d
Successfully built 85bb2729865d
Successfully tagged study4:latest
dockerstudy_web_1 is up-to-date
dockerstudy_api_1 is up-to-date

5. Show Runing Container service

$ docker ps
ONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS        PORTS                    NAMES
af1f3f14e5bf        php:7-apache        "docker-php-entrypoi…"   17 minutes ago      Up 17 minutes       0.0.0.0:80->80/tcp       dockerstudy_web_1
e5f9e49916ef        study4              "./main.py"              17 minutes ago      Up 17 minutes       0.0.0.0:5000->5000/tcp   dockerstudy_api_1

6. Show docker images

$ docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
study4              latest              85bb2729865d        18 minutes ago      127MB
lqwangxg/python     latest              6cf621cb1327        6 days ago          113MB
php                 7-apache            7a935726473b        6 days ago          414MB

7. Add redis service to  docker-compose.yml

$ cat api/Dockerfile
version: '3'

services:
  api:
    image: study4
    build: ./api
    ports:
      - "5000:5000"
    enviroment:
      - REDIS_URL=redis://redis:6379
  web1:
    image: php:7-apache
    ports:
      - "80:80"
    environment:
      - API_ENDPOINT=http://api:5000/api/
    volumes:
      - ./www:/var/www/html
  web2:
    image: php:7-apache
    build: ./www
    ports:
      - "81:80"
    environment:
      - API_ENDPOINT=http://api:5000/api
  redis:
    image: redis

# web1:  don't build docker image, run php:7-apache directly.
# web2:  create a new docker image from php:7-apache, and run.

8. Build and run by docker-compose.yml

$ docker-compose up -d --build
Building api
Step 1/9 : FROM       lqwangxg/python
 ---> 6cf621cb1327
Step 2/9 : LABEL      maintainer="lqwangxg@gmail.com"
 ---> Using cache
 ---> 3514f593e3e4
Step 3/9 : ENV        REDIS_URL="redis://localhost:6379"
 ---> Running in 0dd195b593ba
Removing intermediate container 0dd195b593ba
 ---> a8f8264daa08
Step 4/9 : WORKDIR    /app
 ---> Running in be0262a54304
Removing intermediate container be0262a54304
 ---> bc1e8588280a
Step 5/9 : COPY       requirements.txt /app/
 ---> 411f5b4456e8
Step 6/9 : RUN        pip install -r requirements.txt
 ---> Running in 8ab8378a058b
Collecting beautifulsoup4
...
Building web
Step 1/4 : FROM       php:7-apache
 ---> 7a935726473b
Step 2/4 : LABEL      maintainer="Sawood Alam <@ibnesayeed>"
 ---> Running in f591f0536f20
Removing intermediate container f591f0536f20
 ---> bcd8bd2a2bf3
Step 3/4 : ENV        API_ENDPOINT="http://localhost:5000/api/"
 ---> Running in 2ee1abfdbdaf
Removing intermediate container 2ee1abfdbdaf
 ---> 2a6357cb298d
Step 4/4 : COPY       . /var/www/html/
 ---> c11b8ee6d1d7
Successfully built c11b8ee6d1d7
Successfully tagged study5php:latest
Pulling redis (redis:)...
latest: Pulling from library/redis
d121f8d1c412: Already exists
2f9874741855: Pull complete
d92da09ebfd4: Pull complete
bdfa64b72752: Pull complete
e748e6f663b9: Pull complete
eb1c8b66e2a1: Pull complete
Digest: sha256:1cfb205a988a9dae5f025c57b92e9643ec0e7ccff6e66bc639d8a5f95bba928c
Status: Downloaded newer image for redis:latest
Recreating dockerstudy_web_1 ... done
Recreating dockerstudy_api_1 ... done
Creating dockerstudy_redis_1 ... done
Creating dockerstudy_web2_1  ... done

9. Docker compose down

$ docker compose down
Stopping dockerstudy_api_1   ... done
Stopping dockerstudy_web_1   ... done
Stopping dockerstudy_web2_1  ... done
Stopping dockerstudy_redis_1 ... done
Removing dockerstudy_api_1   ... done
Removing dockerstudy_web_1   ... done
Removing dockerstudy_web2_1  ... done
Removing dockerstudy_redis_1 ... done
Removing network dockerstudy_default

create a hello world by vite in linux docker

. make folder and create-vite-app.sh

mkdir vite
cd vite
cat <<EOF >create-vite-app.sh
appname=$1
if [ -z $appname ]; then
  echo "appname is not set, using default hello-vite."
  appname=hello-vite
else
  echo "appname=$appname"
fi

npm init vite-app $appname
cd $appname
npm install
npm run dev
EOFchmod +x create-vite-app.sh

2. Create vite-app by  node:alpine  image

docker run -it --rm --name vite \
-w /app \
-v ~/vite:/app \
-p 3000:3000 \
lqwangxg/node:alpine \
./create-vite-app.sh vite-app-01

3.  Check to create the result.

ls
create-vite-app.sh  vite-app-01
ls vite-app-01/
index.html         package-lock.json  public
node_modules       package.json       src

K8s On Docker desktop Manage deployment and service

1. Kubernetes create deployment and pod

> kubectl get nodes
NAME             STATUS   ROLES    AGE   VERSION
docker-desktop   Ready    master   62m   v1.16.6-beta.0

> kubectl run testnginx --image lqwangxg/nginx
kubectl run --generator=deployment/apps.v1 is DEPRECATED and
will be removed in a future version.
Use kubectl run --generator=run-pod/v1 or kubectl create instead.
deployment.apps/testnginx created

> kubectl get deployment
NAME        READY   UP-TO-DATE   AVAILABLE   AGE
testnginx   1/1     1            1           62s

> kubectl get pods
NAME                         READY   STATUS    RESTARTS   AGE
testnginx-78cc8cbd6c-7x4zb   1/1     Running   0          98s

2. Kubernetes expose deployment as service

> kubectl expose deployment testnginx --port 80 --type NodePort
service/testnginx exposed

> kubectl get service
NAME         TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE
kubernetes   ClusterIP   10.96.0.1        <none>        443/TCP        74m
testnginx    NodePort    10.106.146.174   <none>        80:32171/TCP   28s
> curl http://localhost
StatusCode        : 200
StatusDescription : OK
Content           : <!DOCTYPE html>
                    <html>
                    <head>
                    <title>Welcome to nginx!</title>
...
> curl http://localhost:32171

StatusCode        : 200
StatusDescription : OK
Content           : <!DOCTYPE html>
                    <html>
                    <head>
                    <title>Welcome to nginx!</title>
                    <style>
                        body {
                            width: 35em;
                            margin: 0 auto;
                            font-family: Tahoma, Verdana, Arial, sans-serif;
                        }
                    </style>
                    <...
> kubectl delete deployment testnginx
deployment.apps "testnginx" deleted

> kubectdl delete service
service "testnginx" deleted

Example of Multi-Stage Docker file builder

1. Multi Stage Dockerfile build (node.js vue.js helloworld)

  ref:https://github.com/lqwangxg/vuechat     Dockerfile

FROM lqwangxg/node:alpine AS builder
WORKDIR /vuechat
RUN npm install -g @vue/cli @vue/cli-service-global
COPY package*.json /vuechat/
RUN npm install
COPY . /vuechat/
RUN npm run build

FROM nginx:alpine
COPY --from=builder /vuechat/dist /usr/share/nginx/html

2. Multi Stage Dockerfile build

FROM alpine:latest as builder
RUN apk --no-cache add build-base

FROM builder as build1
COPY source1.cpp source.cpp
RUN g++ -o /binary source.cpp

FROM builder as build2
COPY source2.cpp source.cpp
RUN g++ -o /binary source.cpp

###=======================
FROM production_image_template
#...
RUN ... to make the destination Image

Introduction of Docker nginx

 1. Docker run nginx:alpine with --mount

## mkdir from folder in dockerhost before --mount,
$ mkdir -p /var/www
$ mkdir -p /var/nginx/conf
## -p :make parent directories as needed.

## run nginx. Be careful:no space on every line head.
docker run --name mynginx2 \
--mount type=bind,\
source=/var/www,\
target=/usr/share/nginx/html,readonly \
--mount type=bind,\
source=/var/nginx/conf,\
target=/etc/nginx/conf,readonly \
-dp 8082:80 nginx:alpine

volume path must be absolute.
like:
  -v ~/vuechat:/vuechat

## static html,js,css will be saved in /var/www/ by docker host
## nginx config will be save in /var/nginx/conf by docker host
## Readonly from docker container. and read-write from dock host

 2. Docker Log Saved path:
    /var/lib/docker/containers/container-ID/container-ID-json.log

$ docker ps -a
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS                  NAMES
c7f35ce5ec0b        nginx:alpine        "/docker-entrypoint.…"   15 minutes ago      Up 15 minutes       0.0.0.0:8082->80/tcp   mynginx2

$ ls /var/lib/docker/containers
c7f35ce5ec0b78abac3b19c6a31bac47282a774909f29406900609a30aaa6248

$ ls /var/lib/docker/containers/c7f*
c7f35ce5ec0b78abac3b19c6a31bac47282a774909f29406900609a30aaa6248-json.log
checkpoints
config.v2.json
hostconfig.json
hostname
hosts
mounts
resolv.conf
resolv.conf.hash

$cat /var/lib/docker/containers/c7f*/c7f*.log
...

{"log":"/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration\n","stream":"stdout","time":"2020-09-14T07:32:48.734972228Z"}
{"log":"/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/\n","stream":"stdout","time":"2020-09-14T07:32:48.735004429Z"}
{"log":"/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh\n","stream":"stdout","time":"2020-09-14T07:32:48.737170543Z"}
{"log":"10-listen-on-ipv6-by-default.sh: Getting the checksum of /etc/nginx/conf.d/default.conf\n","stream":"stdout","time":"2020-09-14T07:32:48.743271983Z"}
{"log":"10-listen-on-ipv6-by-default.sh: Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf\n","stream":"stdout","time":"2020-09-14T07:32:48.758506583Z"}
{"log":"/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh\n","stream":"stdout","time":"2020-09-14T07:32:48.758856885Z"}
{"log":"/docker-entrypoint.sh: Configuration complete; ready for start up\n","stream":"stdout","time":"2020-09-14T07:32:48.763013513Z"}

3. Docker nginx Dockerfile

FROM nginx
RUN rm /etc/nginx/nginx.conf /etc/nginx/conf.d/default.conf
COPY content /usr/share/nginx/html
COPY conf /etc/nginx
VOLUME /var/nginx/log

Docker rm all container / Docker rmi all images

 1. Docker rm  all containers

docker ps -a | grep -i exited | tail -n +2 | awk '{print $1 }' | xargs docker rm

# grep -i exited: filter exited docker containers by grep.
# tail -n +2: start from line2, skip header line.
# awk '{print $1}' :print the containerID
# send to docker rm for delete

docker images | tail -n +2 | awk '{print $3 }' | xargs docker rmi

# tail -n +2: start from line2, skip header line.
# awk '{print $3}' :print the imageID
# send to docker rmi for delete

Introduction Of CI/CD workflow on Node Application

WORKFLOW

1. SOURCE DOWNLOAD FROM GITHUB ( git clone URL)
2. UPDATE SOURCE AND GIT COMMIT  (git commit -m "comment")
3. BUILD SOURCE BY JENKINS
4. BUILD DOCKER IMAGES BY DOCKER BUILD
5. DEPLOY DOCKER IMAGE

 1. Download/Upload source from git

git clone https://github.com/lqwangxg/vuechat
git commit -m "comment"
git push -u origin master

 2. Docker pull Jenkins  and run Jenkins

docker pull jenkins/jenkins

docker run -dp 8080:8080 -p 50000:50000 --name jenkins \
 -v jenkins_home:/var/jenkins_home jenkins/jenkins
/var/jenkins_home/secrets/initialAdminPassword

# play with docker:
#cat /var/lib/docker/volumes/jenkins_home/_data/secrets/initialAdminPassword

 3. Config Jenkins

#1 Jenkins system configuration
    install build tool plugins like github, nodejs, docker
#2 project configuration
  setting username password for logining to respository
#3 action before and after building.
  - git fetch from git repository
  - npm install
  - npm run build
  - docker build -tag imagename -f Dockerfile.deploy  .
  - docker run  -d -p 8080:8080 imagename
